WORK-CLASS / 800 M
R-400
Twelve thrusters for work in open water.

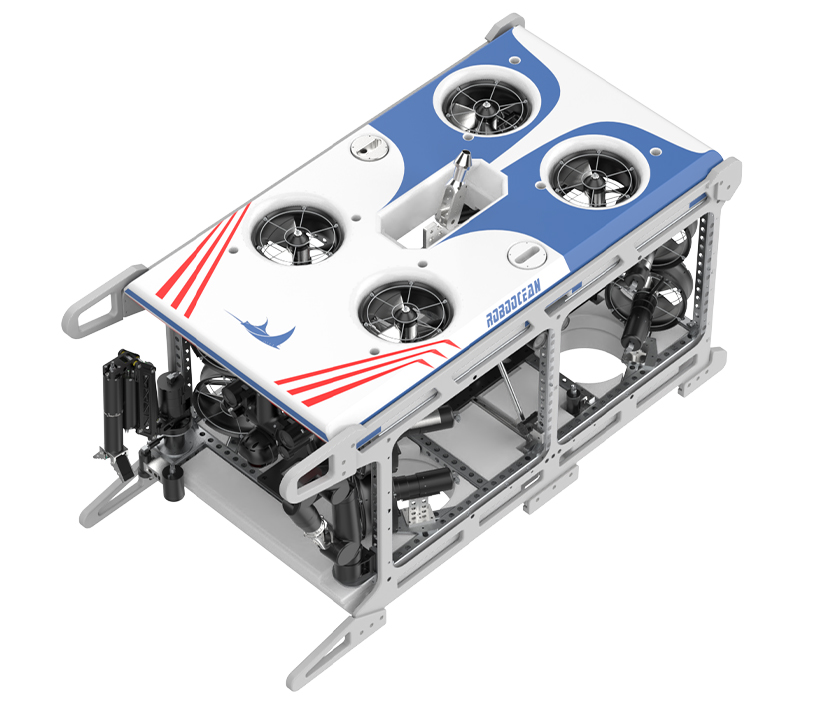

A 520 kg work-class ROV rated to 800 m, with a 50 kg payload and 12 thrusters for offshore wind foundations, subsea cables and hydropower tasks.
Get a configuration & quote
Manufacturer product rendering · Boya GongdaoTECHNICAL STARTING POINT
Key specifications.
- Vehicle weight
- 520 ± 10 kg
- Depth rating
- 800 m
- Payload
- 50 kg
- Dimensions
- 2,080 × 1,020 × 1,150 mm
- Thrusters
- 12 (8 horizontal vector + 4 vertical)
- Cruise speed
- 1.65 m/s
- Cameras
- Four 1080p: front, rear, left, right
- Power
- External tethered supply, shore power unit
Tasks to assess
- Offshore wind foundation, scour and grouting checks
- Subsea cable route surveys with suitable sonar and burial-depth sensors
- Hydropower and marine structures needing heavier tools or manipulators
Configuration checks
- Confirm the support vessel, crane or A-frame, deck space and crew for a 520 kg vehicle.
- Specify sonar, manipulators and survey sensors; each is optional and changes payload and trim.
- Agree data outputs and reporting standards with the asset owner before mobilisation.
COMPLETE SYSTEM
Specify more than
the vehicle.
Sonar and five- or seven-function manipulators are optional items purchased separately. The manufacturer describes modest support-vessel requirements; confirm the vessel, launch system and complete-system footprint for each project.
Confirm in the delivered scope
- Vehicle and installed payload
- Control station and software functions
- Tether length, reel and power supply
- Selected tools, sensors and deployment equipment
- Transport cases, spares, manuals and training
Standard, optional and custom items must be listed separately in the quotation.
Browse ROV tools & accessoriesQUESTIONS
Before you specify the R-400.
How does the R-400 compare with the R-150?
The R-400 is rated deeper (800 m vs 500 m), carries more payload (50 kg vs 20 kg) and has 12 thrusters instead of 8. It is also heavier and needs larger launch equipment, so choose it when the task needs the extra depth, tooling or thrust.
Has it been used offshore?
The manufacturer reports two offshore wind projects in Guangdong, China, for an offshore wind farm operator: inspection of booster-station pile foundations and grouting, and a subsea cable survey covering seabed anomalies and burial depth. These are manufacturer references, not projects delivered by PanPan Marine.
PROCUREMENT
Prepare the next review.
Agree the site conditions, acceptance test, delivery scope and support responsibilities. Product names and rated figures alone are not a project specification.
R-400 starting brief
Download a concise summary of the specifications and project questions shown here. This is a selection aid, not a factory-approved datasheet.
Download product briefFROM TASK TO CONFIGURATION
Bring your project into focus.
Share the task, site conditions and required results. Build a clear brief for system selection.
