PORTABLE / OBSERVATION
R-20 / R-20Li
One-person deployment for quick visual checks.
A compact 16 kg observation ROV with a tethered power supply (R-20) or an internal lithium battery (R-20Li), for fast visual checks where vehicle size and handling matter.
Get a configuration & quote

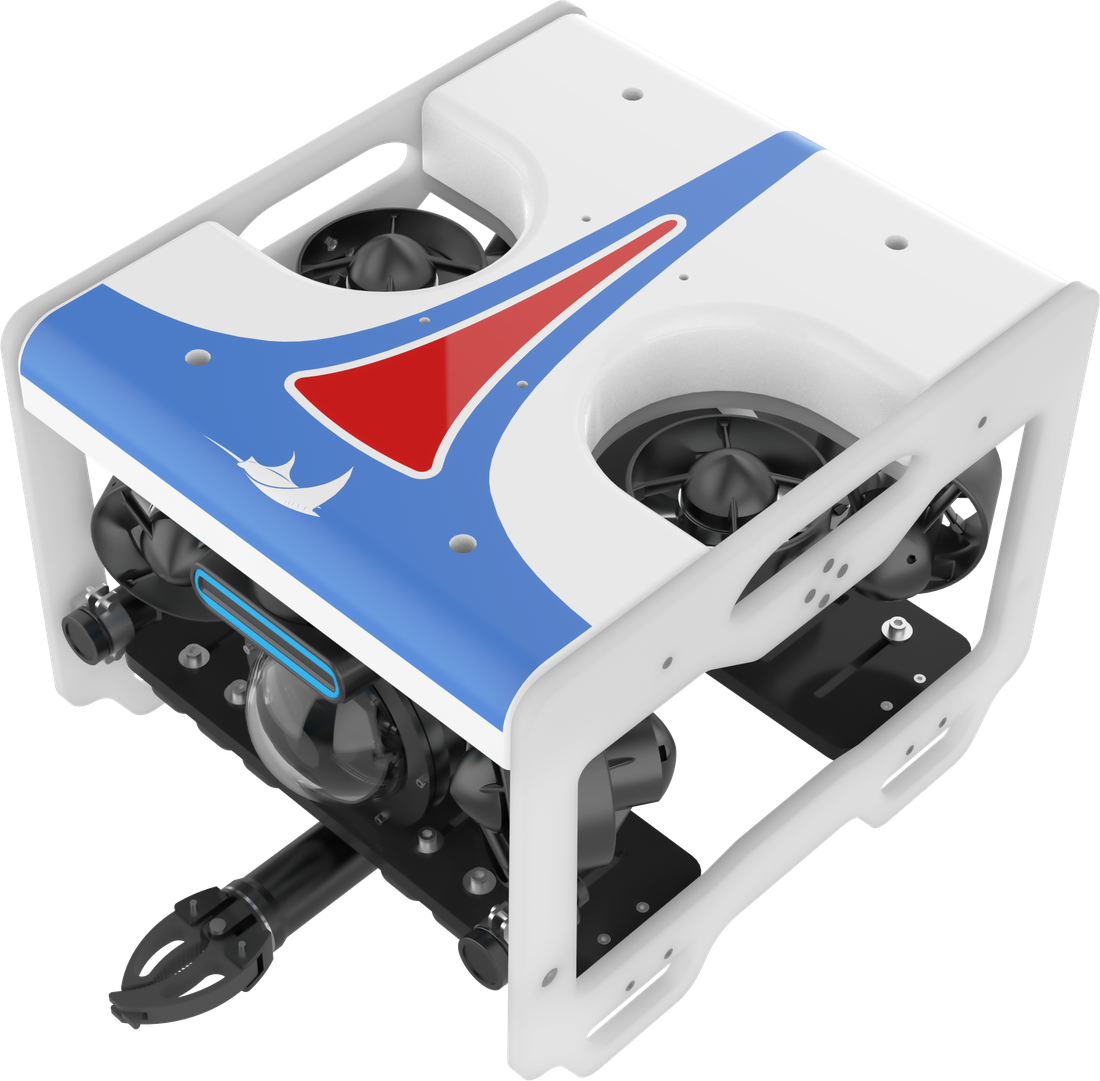

Manufacturer product rendering · Boya Gongdao · may show optional equipmentTECHNICAL STARTING POINT
Key specifications.
- Vehicle weight
- 16 kg
- Depth rating
- 150 m
- Payload
- 0.6 kg
- Dimensions
- 430 × 380 × 340 mm
- Camera
- 1080p; ±60° built-in tilt
- Thrusters
- 6 (4 horizontal vector + 2 vertical)
- Power · R-20
- External tethered supply
- Power · R-20Li
- Internal lithium battery; brochure 2–5 h
Tasks to assess
- Quick visual checks of bridge piers, intakes, culverts and harbour structures
- Sites where one-person carry and fast setup matter
- Locations without convenient power (R-20Li)
Configuration checks
- Keep optional sonar or a gripper within the 0.6 kg payload and re-check trim.
- Choose R-20 or R-20Li by mission duration and power access; confirm R-20Li runtime with the installed equipment.
- Add sonar where poor visibility makes camera-only inspection unreliable.
COMPLETE SYSTEM
Specify more than
the vehicle.
Sonar and a single-function gripper are optional items purchased separately. The brochure lists 2–5 hours of R-20Li battery operation; actual runtime depends on load, current and installed equipment. Battery shipment follows the dangerous-goods rules that apply to the supplied battery.
Confirm in the delivered scope
- Vehicle and installed payload
- Control station and software functions
- Tether length, reel and power supply
- Selected tools, sensors and deployment equipment
- Transport cases, spares, manuals and training
Standard, optional and custom items must be listed separately in the quotation.
Browse ROV tools & accessoriesQUESTIONS
Before you specify the R-20 / R-20Li.
Should I choose the R-20 or the R-20Li?
The two share the same vehicle figures. The R-20 runs on an external tethered supply for longer missions; the R-20Li carries its own lithium battery for sites where power access is difficult and missions are short.
Can it inspect pipes or culverts?
The manufacturer describes use in drainage culverts and municipal networks. Check the smallest opening, bends, tether drag and recovery route against the fully equipped vehicle before planning an internal pipe inspection.
What affects R-20Li runtime?
Current, manoeuvring, lighting, water temperature and added equipment all draw on the battery. Treat the 2–5 hour brochure range as a planning band and confirm runtime for your configuration.
PROCUREMENT
Prepare the next review.
Agree the site conditions, acceptance test, delivery scope and support responsibilities. Product names and rated figures alone are not a project specification.
R-20 / R-20Li starting brief
Download a concise summary of the specifications and project questions shown here. This is a selection aid, not a factory-approved datasheet.
