LIGHT WORK-CLASS / 500 M
R-150
Payload and thrust for tasks beyond a camera.
A 195 kg light work-class ROV rated to 500 m, with a 20 kg payload and modular interfaces for sensors and tools on offshore and hydraulic-structure tasks.
Get a configuration & quote

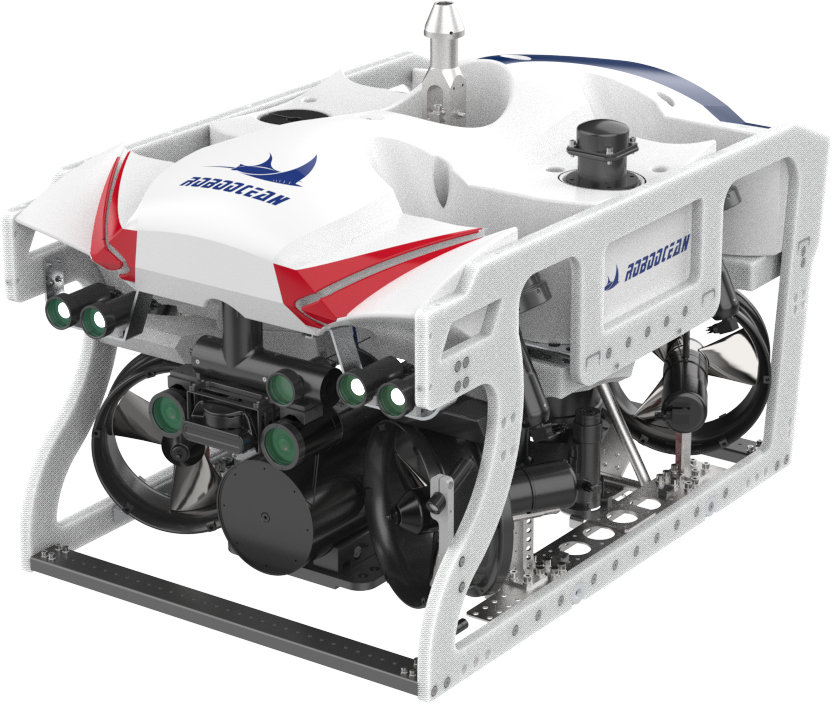

Manufacturer product rendering · Boya GongdaoTECHNICAL STARTING POINT
Key specifications.
- Vehicle weight
- 195 ± 5 kg
- Depth rating
- 500 m
- Payload
- 20 kg
- Dimensions
- 1,170 × 780 × 770 mm
- Thrusters
- 8 (4 horizontal vector + 4 vertical)
- Cameras
- 1080p front, rear, left and right
- Power
- External tethered supply
Tasks to assess
- Inspection and light intervention on hydraulic structures that need heavier sensor packages
- Offshore wind, platform and pipeline tasks, assessed project by project
- Sensor and tool integration such as sonar, sampling or cutting tools
Configuration checks
- Plan crane or A-frame launch and recovery, deck space and handling crew.
- Confirm tool interfaces, hydraulic or electrical supply and the effect on trim.
- Check tether length and drag against current and working depth.
COMPLETE SYSTEM
Specify more than
the vehicle.
The manufacturer describes stable operation in sea state 4 and modular tool interfaces; confirm the test conditions and the specific tools offered for the supplied version. Sonar is an optional item purchased separately. The complete system includes the tether management system, control station and power supply.
Confirm in the delivered scope
- Vehicle and installed payload
- Control station and software functions
- Tether length, reel and power supply
- Selected tools, sensors and deployment equipment
- Transport cases, spares, manuals and training
Standard, optional and custom items must be listed separately in the quotation.
Browse ROV tools & accessoriesQUESTIONS
Before you specify the R-150.
Is the R-150 suitable for offshore wind or oil and gas work?
The manufacturer lists offshore wind cable, platform and pipeline applications. Owner requirements, inspection standards and deployment vessels differ by project, so suitability is assessed per project rather than assumed.
What is needed to deploy it?
At 195 kg the vehicle needs mechanical launch and recovery, deck or quayside space, power and a trained crew. Confirm the full system weight and footprint in the quotation.
Has it been used for seabed sampling?
In early 2025 the manufacturer reports deploying the R-150 from a research vessel in the Yinggehai area off Hainan, China, to inspect the seabed with HD video and take vertical samples for mineral assessment. This is a manufacturer reference, not a project delivered by PanPan Marine.
PROCUREMENT
Prepare the next review.
Agree the site conditions, acceptance test, delivery scope and support responsibilities. Product names and rated figures alone are not a project specification.
R-150 starting brief
Download a concise summary of the specifications and project questions shown here. This is a selection aid, not a factory-approved datasheet.
Download product briefFROM TASK TO CONFIGURATION
Bring your project into focus.
Share the task, site conditions and required results. Build a clear brief for system selection.
