COMPACT CRAWLER / WALL INSPECTION
A-30
Swim in, roll over, crawl along the wall.
A 35 kg crawler inspection robot that swims, rolls onto a wall and crawls along it, for close inspection of tanks, pools, pipes and structure surfaces to 100 m.
Get a configuration & quote

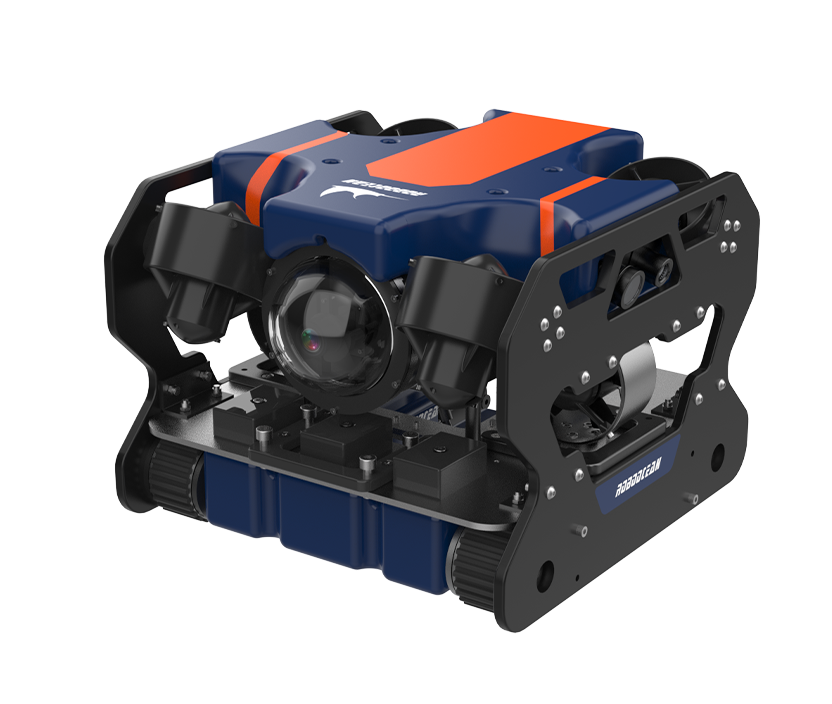

Manufacturer product rendering · Boya GongdaoTECHNICAL STARTING POINT
Key specifications.
- Vehicle weight
- 35 kg
- Depth rating
- 100 m
- Payload
- 3 kgf (test method to confirm)
- Dimensions
- 400 × 400 × 300 mm
- Thrusters
- 6 (2 horizontal vector + 4 vertical)
- Camera
- 1080p; ±90° tilt
- Power
- External tethered supply
Tasks to assess
- Weld and surface inspection on the walls of tanks, pools and lined basins
- Inside and outside pipes and confined structures where a crawler can hold position
- Tasks that combine a camera with a contact or near-contact NDT probe
Configuration checks
- Confirm wall material, cleanliness and curvature for crawling and adhesion.
- Specify the inspection probe (for example ACFM) and its integration, calibration and data output.
- Check access, tether routing and recovery from the work area.
COMPLETE SYSTEM
Specify more than
the vehicle.
The manufacturer designs the A-30 for one-person deployment and lists compatibility with a line-tracking system. The 3 kgf payload is expressed as a force; confirm how it was measured. NDT probes, their certification and the inspection procedure are specified per project.
Confirm in the delivered scope
- Vehicle and installed payload
- Control station and software functions
- Tether length, reel and power supply
- Selected tools, sensors and deployment equipment
- Transport cases, spares, manuals and training
Standard, optional and custom items must be listed separately in the quotation.
Browse ROV tools & accessoriesQUESTIONS
Before you specify the A-30.
What can the A-30 inspect?
It is designed for wall-contact inspection in small spaces: welds and surfaces in pools and tanks, and inside or outside pipes and structures. The camera gives visual inspection; quantitative NDT needs a suitable probe and procedure.
Has it been used for weld inspection?
The manufacturer reports a development project for a stainless-lined pool, where the A-30 carried an ACFM inspection module and used vision-based weld recognition to follow weld seams automatically. This is a manufacturer reference, not a project delivered by PanPan Marine.
PROCUREMENT
Prepare the next review.
Agree the site conditions, acceptance test, delivery scope and support responsibilities. Product names and rated figures alone are not a project specification.
A-30 starting brief
Download a concise summary of the specifications and project questions shown here. This is a selection aid, not a factory-approved datasheet.
Download product briefFROM TASK TO CONFIGURATION
Bring your project into focus.
Share the task, site conditions and required results. Build a clear brief for system selection.
