OCEAN OBSERVATION / GLIDER
GL-1300
Months of profiling from a single deployment.
A buoyancy-driven underwater glider rated beyond 1,300 m, with glide and vertical-profile modes for long-duration ocean observation.
Export is subject to approval for each project. Availability for your country is confirmed on enquiry.
Get a configuration & quote

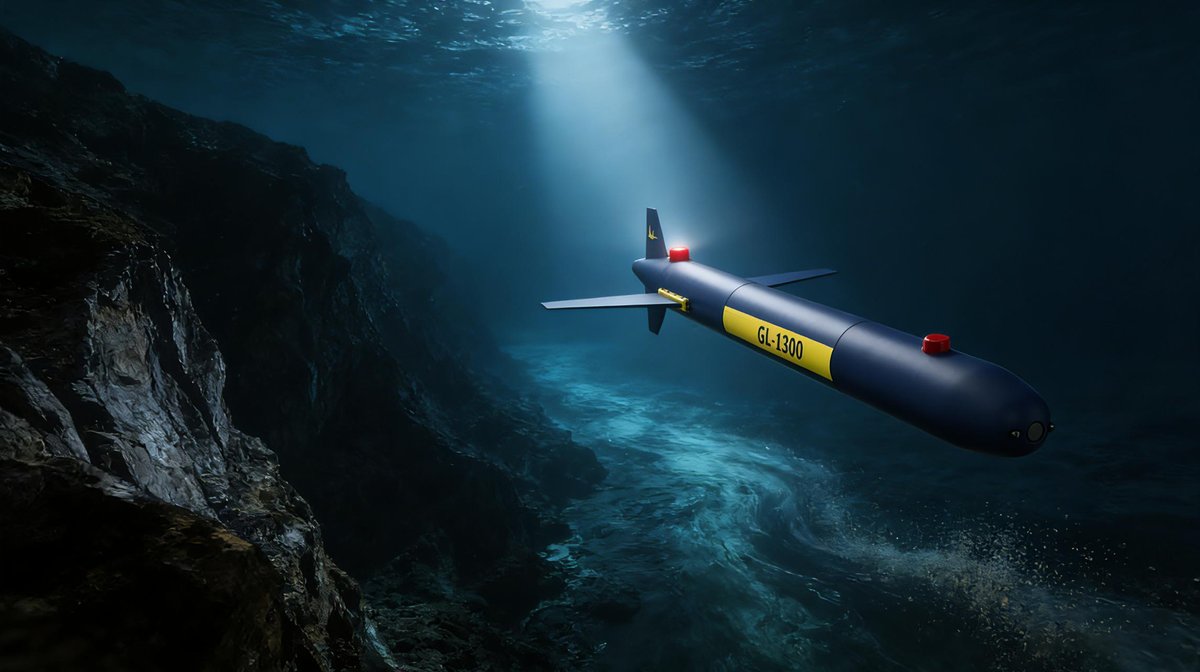

Manufacturer product rendering · Boya GongdaoTECHNICAL STARTING POINT
Key specifications.
- Maximum depth
- ≥ 1,300 m
- Modes
- Glide and vertical profile
- Average glide speed
- ≥ 0.5 kn
- Battery
- Primary lithium, ≥ 500 Ah
- Endurance
- ≥ 120 days (CTD only, profile glide)
- Deployment
- Launch and recovery up to sea state 5
- Service life
- ≥ 5 years
Tasks to assess
- Physical oceanography surveys of temperature and salinity profiles
- Ecological observation networks over wide areas
- Long-duration monitoring where ships are costly to keep on station
Configuration checks
- Select the sensor payload and confirm its effect on endurance.
- Plan transport of primary lithium batteries; dangerous-goods rules apply.
- Agree launch, recovery, communication and data-processing arrangements.
COMPLETE SYSTEM
Specify more than
the vehicle.
The manufacturer describes a low-drag, low-noise, low-power design built from six modular units, supporting different sensors and power modules. This site presents the glider for civil ocean observation only.
Confirm in the delivered scope
- Glider, batteries and selected sensors
- Communication, mission planning and data software
- Launch and recovery equipment
- Spares, battery shipping arrangements and training
Standard, optional and custom items must be listed separately in the quotation.
QUESTIONS
Before you specify the GL-1300.
How long can it stay at sea?
With only the CTD running in profile-glide mode, the catalogue lists at least 120 days per deployment. Additional sensors reduce endurance.
How is it powered and shipped?
It uses primary (non-rechargeable) lithium batteries of at least 500 Ah. These are dangerous goods for transport, so shipping is planned per project.
PROCUREMENT
Prepare the next review.
Agree the site conditions, acceptance test, delivery scope and support responsibilities. Product names and rated figures alone are not a project specification.
GL-1300 starting brief
Download a concise summary of the specifications and project questions shown here. This is a selection aid, not a factory-approved datasheet.
Download product briefFROM TASK TO CONFIGURATION
Bring your project into focus.
Share the task, site conditions and required results. Build a clear brief for system selection.
